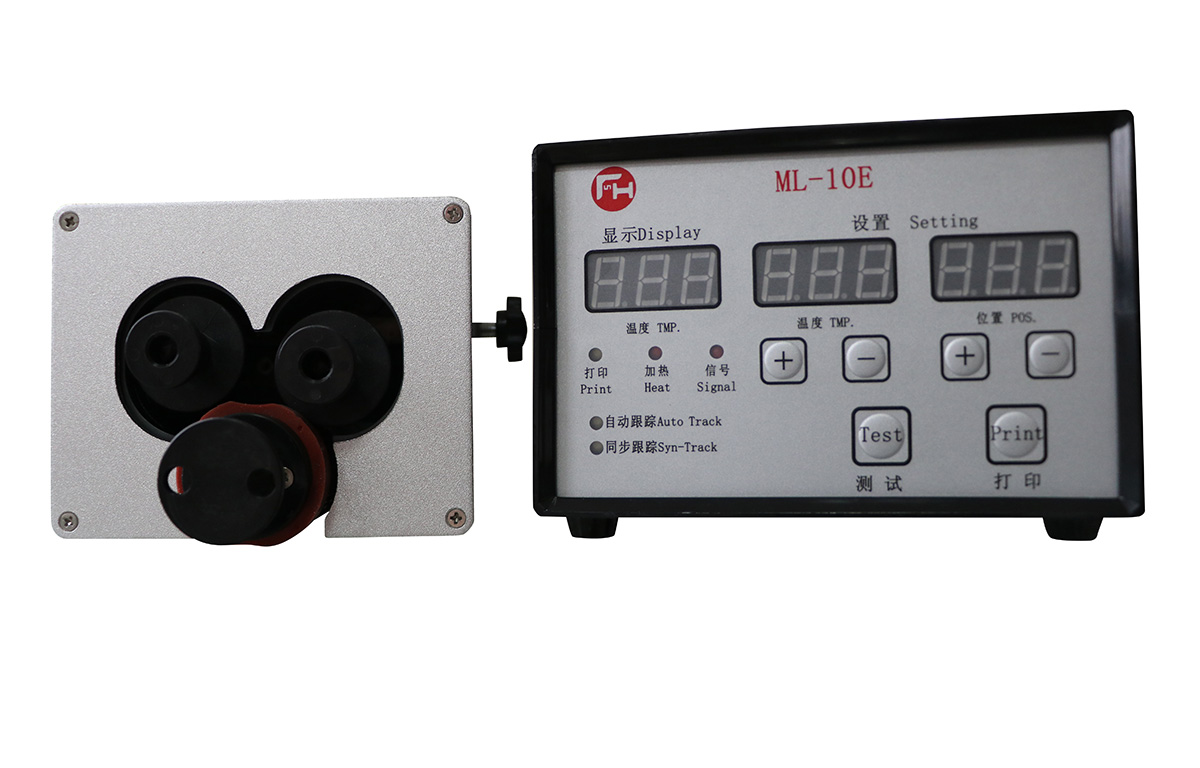

ML-10E Hot Ink Roll Coder(Double Rolls) is featured by patent design of double ink rolls. This design has reduced much trouble in frequently changing rolls during operation, hence improving efficiency.
Product Features
1.Printing Method
Automatically printing with solid ink rolls.

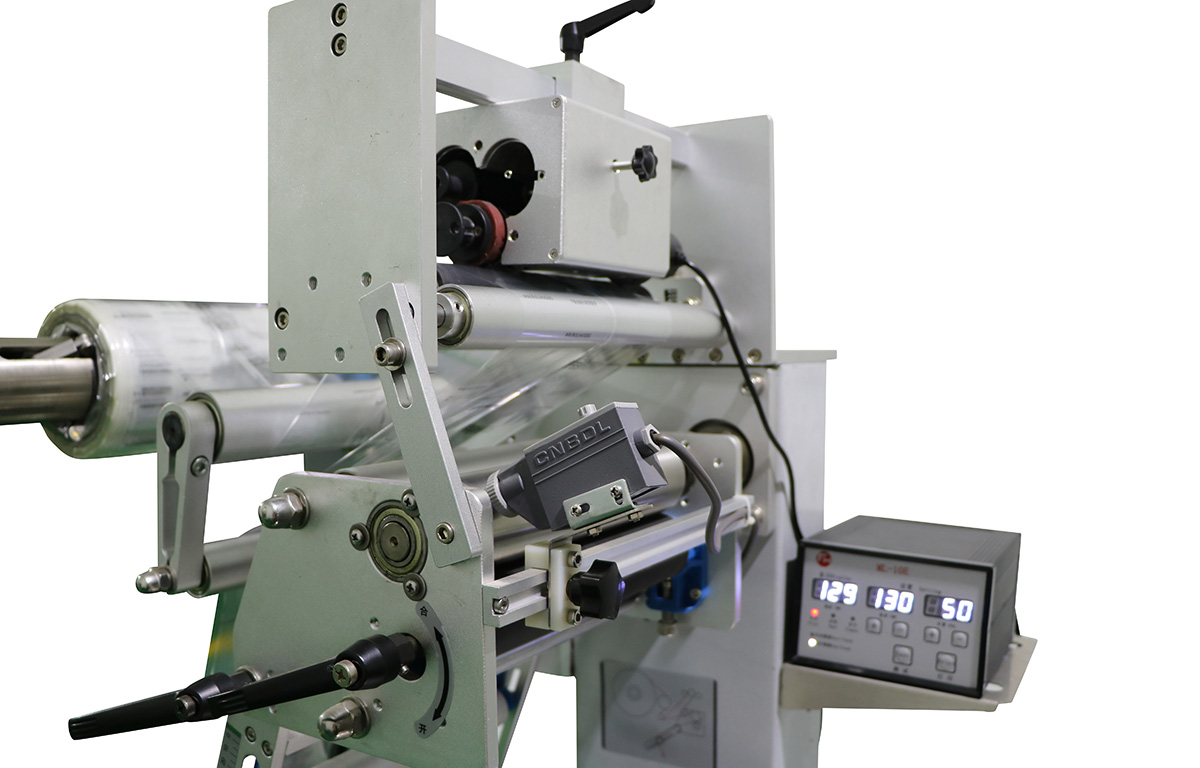

Considering various structures of packing machines, Hot Ink Roll Coders should be installed at the position which will not affect the machine operation based on the site condition, and the mounting bracket can be customized according to customers’ requirements.
2. Features
Double-roll design,reducing trouble in frequently changing rolls, hence improving efficiency.
Industrial-grade panel with touch buttons guarantees smooth panel operation for more than 300,000 times.
Simple & Clear operation interface enables fast-learning process for customers.
Supporting various operating modes, such as NPN ,PNP, PLC etc.
Supporting different printing modes, such as automatic signal tracking and encoder modes.
Compact size, easy installation and simple operation.
It is specially designed for automatic feeding lines, suitable for applications of frequent shut-downs and fast speed changes.
Printing Area | Axial≤40mm (perpendicular to feeding direction) Radial≤60mm (parallel to feeding direction) |
Printing Lines | T-type（Axial）≤13 lines，max 20 characters per line R-type（Radial）≤10 lines，max 13 characters per line |
Type Sizes | U-type1.5 mm,2.0 mm,2.5 mm,3.0 mm(W) ×3.5mm(H) R-type3.5mm(W)×3.5,4.5,5.5mm(H)(Customized) |
Printing Speed | ≤300times/min |
Linear Speed | ≤35m/min |
Pouch Length | ≥38mm(4-up printer) ≥75mm(2-up printer) |
Ink Rolls | φ36×35mm(Standard size) |
Electricity | AC220±10V, 50/60Hz |
Power | 130W,2A fuse |
Working Temperature | 4℃-40℃ |
Relative Humidity | 10%-95% |
Weight | Printing Unit: 2.0kg, Controller: 1.0kg |
Outline Dimension | Printing Unit：126mm×100mm×172mm(L×W×H) Controller：161mm×180mm×105mm(L×W×H) |
